Screen Melt — Part 2

We lost power due to an ice storm during the early morning hours of the second firing on Friday. Fortunately the kiln had already gone through its anneal stage and was cooling to room temperature! I let the kiln sit until we got our power back on Sunday. No worries about shocking the glass after 2 days in a cold kiln.

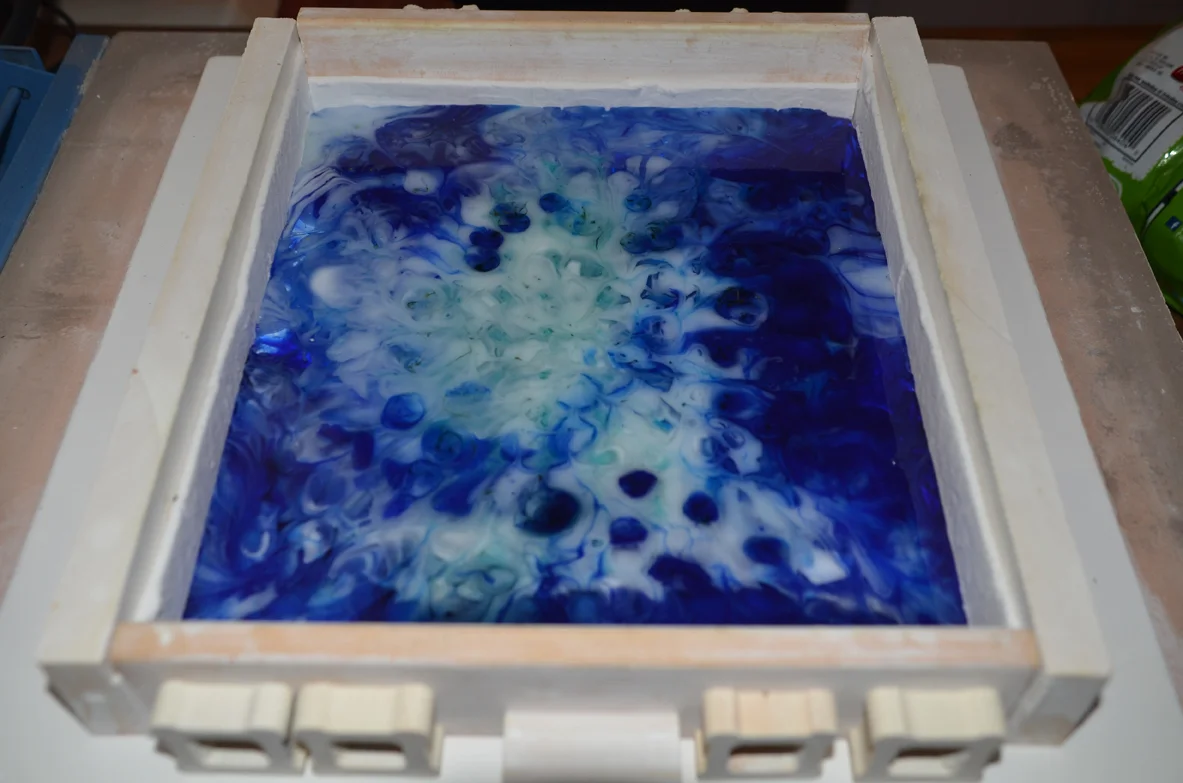

The top of the screen melt did exactly what I wanted it to do, which was smooth out. No spikes left and a nice smooth surface with no devit.

After the second firing, note the nice smooth finish and no spikes.

After the second firing, note the nice smooth finish and no spikes.

The bottom, as expected, had kiln wash stuck to it. Sorry I didn't get a picture of the bottom of the glass before I cleaned it up. I did get a picture of the kiln shelf tough.

Where you see pink kiln shelf is where the kiln wash stuck to the glass.

Where you see pink kiln shelf is where the kiln wash stuck to the glass.

I like to give the edges a quick grind on the Wizard grinder to knock off any sharp spots and reduce the risk of getting cut when I'm handling the screen melt.

To remove the kiln wash from the bottom of the screen melt I used wet/dry sand paper, a water bucket to work in, and a little elbow grease. It took less than 10 minutes to clean it up. When I get ready to use the screen melt I'll probably hit the bottom with some silicone carbide and some wet/dry sand paper, just to be sure there is no kiln wash left.

The bottom of the screen melt after using just wet/dry sand paper.

The bottom of the screen melt after using just wet/dry sand paper.



/

Enter your email address to be notified of future Screams of the Squirrel. To protect the squirrel (and you) from gathering too many nuts, signing up is a two-step process. You will receive an email to confirm your request.

Delivered by FeedBurner

Screen Melt — Part 1

Thanks for stopping by. This is the first Scream of the Squirrel! I've decided to use a blog format to post tutorials and other information about Screaming Squirrel Glass on a regular basis. I hope that you find it useful.

I spent a few days sorting scrap glass by color and decided to make a screen melt. I'm using the Paragon CS-16S kiln, Bullseye Kiln Wash, Bullseye fusible glass, 12 x 12 inch stainless steel screen (prefired to 1200° to remove the oils and things left behind when it was processed), cut up kiln shelves as dams, and 1/8 inch ceramic fiber for the containment area.

First, I applied 20 - 25 coats of kiln wash to the kiln shelf and let it dry for a few days. When it was good and dry I built a 10 x 12 inch containment area out of cut up mullite kiln shelves and lined it with 1/8 inch ceramic fiber paper. The stainless steel screen is set on top.

I calculated that I would take about 2000 grams of glass to properly fill the area and have the glass about 5/8 to 3/4 inches thick. I used 800 grams each of blue and white and 200 grams of clear.

For this project I put a layer of blue, then white, then clear, and then filled in the empty spaces until I had used up all of my glass.

Glass selected, weighed and stacked.

Glass selected, weighed and stacked.

Now to figure out a firing schedule. Since the glass was pretty close to the elements in the top of the kiln I needed to ramp slowly. I calculate my schedule in Fahrenheit.

150 DPH to 1000° no hold

500 DPH to 1625° 90 minute hold (so most of the glass will flow through the screen)

AFAP to 1500° 30 minute hold (to help remaining glass clear the screen and let the bubbles out)

AFAP to 900° for 2hrs

27 DPH to 800 no hold

50 DPH to 700 no hold

162 DPH to room temp

I've learned from past mistakes to not open the kiln during the firing or cooling. Have you ever tried it, only to hear that tell-tale "ping" of cracking glass?



After the firing. The kiln is at 67° for more than 24 hours.

After the firing. The kiln is at 67° for more than 24 hours.

When I first opened the kiln I wasn't too impressed with the results. All the glass had melted and it looked scuzzy on top.

Kind of disappointing looking isn't it? Notice the big spike?

Kind of disappointing looking isn't it? Notice the big spike?





After taking off the screen and carefully picking up any big pieces of glass, I broke out the shop vac and gave it a good Hoovering (the kiln was off and unplugged!) The reveal was pretty cool!

The screen melt after the vacuuming. I'm happy so far!

The screen melt after the vacuuming. I'm happy so far!

There are still spikes on the top of the glass so tonight I have it back in the kiln to smooth everything out. I'm pretty conservative with my annealing and cool down schedules. The schedule for this firing is:

200 DPH to 1100 hold 10 minutes

600 DPH to 1500 hold 30 minutes

AFAP to 900° hold 2hrs

27 DPH to 800° no hold

49 DPH to 700° no hold

162 DPH to 70°

Off

I'll post the next steps and pictures of the final slab in the next few days.
